GridView のヘッダ、列を固定

by WebSurfer 2011年4月30日 12:52
2017/8/16 注記追加
Windows 10 IE11 では Quirks モード(IE5 相当)にしても expression 関数が働かないようで、テーブルのヘッダ・列は固定されませんのでご注意ください。この記事はもう意味がないかもしれませんが、せっかく書いたので残しておきます。

以前の記事 table のヘッダ、列を固定 では ListView を使ったときの例を書きましたが、ここでは GridView を使ったときの例を紹介します。  (2013/2/7 追記:このページに紹介したのは IE の互換モード(Quirks モード)専用ですが、GridView のヘッダ、列を固定(その 2)のページに IE7+ (標準モードの), Firefox, Chrome, Safari, Opera コンパチのものを書きましたので、そちらも見てください)

GridView のヘッダ、列を固定

GridView も html にレンダリングされると table, tr, th, td などの要素になりますが、それらは自動的に(勝手に)生成され、かつ、直接スタイルを適用できないので結構面倒です。

今回は先の ListView を使った場合の例よりヘッダーを少し複雑にしました(一部のセルの rowspan を 2 にしてみました)ので、ますます面倒になっています。(笑)

という訳で、実際にはあまり役に立たないと思いますが、せっかく苦労して作ったので書いておくことにしました。

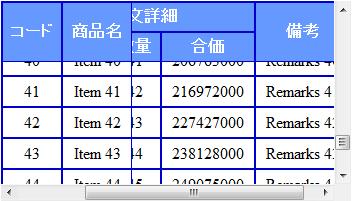

上の画像を出力したコードは下記の通りです。実際に動かして試せるよう 実験室 にアップしましたので、興味のある方は試してみてください。

<%@ Page Language="C#" %>
<%@ Import Namespace="System.Data" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<script runat="server">
  DataTable CreateDataTable()
  {
    DataTable dt = new DataTable();
    DataRow dr;

    dt.Columns.Add(new DataColumn("Code", typeof(Int32)));
    dt.Columns.Add(new DataColumn("Name", typeof(string)));
    dt.Columns.Add(new DataColumn("Price", typeof(Int32)));
    dt.Columns.Add(new DataColumn("Qty", typeof(Int32)));
    dt.Columns.Add(new DataColumn("Amount", typeof(Int32)));
    dt.Columns.Add(new DataColumn("Remarks", typeof(string)));

    for (int i = 0; i < 50; i++)
    {
      dr = dt.NewRow();
      dr["Code"] = i;
      dr["Name"] = "Item " + i.ToString();
      dr["Price"] = 123000 * (i + 1);
      dr["Qty"] = i + 1;
      dr["Amount"] = 123000 * (i + 1) * (i + 1);
      dr["Remarks"] = "Remarks " + i.ToString();
      dt.Rows.Add(dr);
    }
    return dt;
  }

  void Page_Load(Object sender, EventArgs e)
  {
    if (!IsPostBack)
    {
      GridView1.DataSource = CreateDataTable();
      GridView1.DataBind();
    }
  }

  // RowDataBound で細工すると PostBack で表示が崩れるので
  // 注意(ViewState との関係が崩れるらしい)
  protected void GridView1_RowCreated(object sender,
    GridViewRowEventArgs e)
  {
    if (e.Row.RowType == DataControlRowType.Header)
    {
      System.Collections.Generic.List<TableCell> cells =
        new System.Collections.Generic.List<TableCell>();
      foreach (TableCell cell in e.Row.Cells)
      {
        cells.Add(cell);
      }

      GridViewRow row1 =
        new GridViewRow(
          -1,
          -1,
          DataControlRowType.Header,
          DataControlRowState.Normal);
      cells[0].RowSpan = 2;
      cells[1].RowSpan = 2;
      cells[5].RowSpan = 2;

      TableHeaderCell headerCell = new TableHeaderCell();
      headerCell.ColumnSpan = 3;
      headerCell.Controls.Add(new LiteralControl("注文詳細"));
      row1.Cells.Add(cells[0]);
      row1.Cells.Add(cells[1]);
      row1.Cells.Add(headerCell);
      row1.Cells.Add(cells[5]);

      GridViewRow row2 =
        new GridViewRow(
          -1,
          -1,
          DataControlRowType.Header,
          DataControlRowState.Normal);
      for (int i = 2; i < 5; i++)
      {
        row2.Cells.Add(cells[i]);
      }
      row1.CssClass = "FreezingHeader1";
      row2.CssClass = "FreezingHeader2";
      GridView1.Controls[0].Controls.Clear();
      GridView1.Controls[0].Controls.Add(row1);
      GridView1.Controls[0].Controls.Add(row2);
    }
  }

  // position:relative を適用することにより border の
  // 幅が変わってしまう。以下はその調整。
  protected void GridView1_PreRender(object sender, EventArgs e)
  {
    // ヘッダは 3 行できるのでそれの識別用
    int count = 0;

    // GridView.Rows はデータ行の GridViewRow のみ
    // GridView1.Controls[0].Controls はヘッダ、
    // フッターも含む
    foreach (GridViewRow row in GridView1.Controls[0].Controls)
    {
      if (row.RowType == DataControlRowType.Header)
      {
        if (count == 0)
        {
          row.Cells[0].Style["border-width"] = "2 1 1 2";
          row.Cells[1].Style["border-width"] = "2 1 1 1";

          // これがないとヘッダの "備考" のセルの下半分
          // が切れてしまう。
          // "コード" と "商品名" セルには FreezingCol
          // に position:relative が含まれるので不用
          row.Cells[3].Style["position"] = "relative";
          row.Cells[3].Style["border-width"] = "2 2 1 1";
        }
        // 何故か自動でできてしまうヘッダの 3 行目を消去
        if (count == 2)
        {
          row.Style["display"] = "none";
        }
      }
      else if (row.RowType == DataControlRowType.DataRow)
      {
        if (row.RowIndex == GridView1.Rows.Count - 1)
        {
          row.Cells[0].Style["border-width"] = "1 1 2 2";
          row.Cells[1].Style["border-width"] = "1 1 2 1";
        }
        else
        {
          row.Cells[0].Style["border-width"] = "1 1 1 2";
          row.Cells[1].Style["border-width"] = "1 1 1 1";
        }
      }
      else if (row.RowType == DataControlRowType.Footer)
      {
        // 今回、フッターはないので何もしない。
      }
      count++;
    }
  }
</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
  <title></title>
  <%--Quirks モードに設定--%>
  <meta http-equiv="X-UA-Compatible" content="IE=5" />
  <style type="text/css">
    .FreezingHeader1
    {
      z-index: 10;
      position: relative;
      top: expression(this.offsetParent.scrollTop);
      background-color: #0000cc;
    }

    .FreezingHeader2
    {
      z-index: 5;
      position: relative;
      top: expression(this.offsetParent.scrollTop);
      background-color: #0000cc;
    }

    .FreezingCol
    {
      z-index: 1;
      left: expression(
        document.getElementById("freezingDiv").scrollLeft);
      position: relative;
      background-color: white;
    }

    #freezingDiv
    {
      overflow: auto;
      width: 350px;
      height: 200px;
    }

    table.style1
    {
      border-style: none; /* 指定するとスクロールでずれる */
      text-align: center;
      border-collapse: collapse;
    }

    table.style1 th
    {
      border-style: solid;
      border-width: 2px;
      border-color: #0000cc;
      background-color: #6699FF;
      color: #FFFFFF;
      padding: 5px;
    }

    table.style1 td
    {
      border-style: solid;
      border-width: 2px;
      border-color: #0000cc;
      padding: 5px;
    }
  </style>
</head>
<body>
  <form id="form1" runat="server">
  <div id="freezingDiv">
    <asp:GridView ID="GridView1"
      runat="server"
      CssClass="style1"
      Width="450px"
      AutoGenerateColumns="False"
      OnRowCreated="GridView1_RowCreated"
      OnPreRender="GridView1_PreRender">
      <Columns>
        <asp:BoundField DataField="Code"
          HeaderText="コード" >
          <HeaderStyle CssClass="FreezingCol" />
          <ItemStyle CssClass="FreezingCol" />
        </asp:BoundField>
        <asp:BoundField DataField="Name"
          HeaderText="商品名" >
          <HeaderStyle CssClass="FreezingCol" />
          <ItemStyle CssClass="FreezingCol" />
        </asp:BoundField>
        <asp:BoundField DataField="Price"
          HeaderText="単価" >
        </asp:BoundField>
        <asp:BoundField DataField="Qty"
          HeaderText="数量" >
        </asp:BoundField>
        <asp:BoundField DataField="Amount"
          HeaderText="合価" >
        </asp:BoundField>
        <asp:BoundField DataField="Remarks"
          HeaderText="備考" >
        </asp:BoundField>
      </Columns>
    </asp:GridView>
  </div>
  <asp:Button ID="Button1"
    runat="server"
    Text="PostBack" />
  </form>
</body>
</html>
